Welding Tip

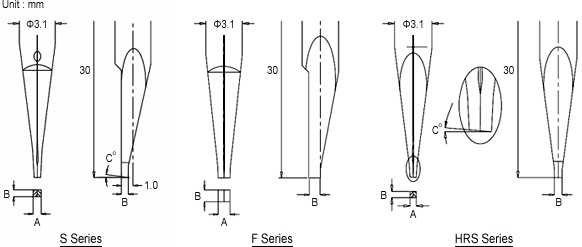

Standard Welding Tips:

Product Code

Type of Welding Tip
Tip End Size AxB
Tip End Angle C

S0505-5
Inclined (S Series)
0.5mm x 0.5mm
5

S0704-7
Inclined (S Series)
0.7mm x 0.4mm
7

S0706-7
Inclined (S Series)
0.7mm x 0.6mm
7

F0808
Flat (F Series)
0.8mm x 0.8mm
N/A
F1004
Flat (F Series)
1.0mm x 0.4mm
N/A
HRS0505-5
Inclined & Centralized (HRS Series)
0.5mm x 0.5mm
5

Custom Size Welding Tip Ordering Method:

Series
Type of Welding Tip

S
Inclined

F
Flat

HRS
Inclined & Centralized

A (mm)
Custom
(See drawing)
B (mm)
Custom
(See drawing)
-
C (angle)
Custom
(See drawing)





Top

Microscope

SZM7045
  • Viewing Head: 45¢X inclined, 360¢X rotatable binocular head with Photo port

  • Eyepiece: WF10X20mm, Wide field, high-eye point eyepiece
    •
  • Objective: Zoom objective magnification 0.70X-4.5X.
    •
  • Magnification: 7X-90X or 3.5X-180X with auxiliary
    •
  • Inter-pupillary Distance: 55-75mm
    •
  • Diopter Range: ¡Ó5mm
    •
  • Max. Height: 160mm
    •
  • Max. Distance: 150mm
